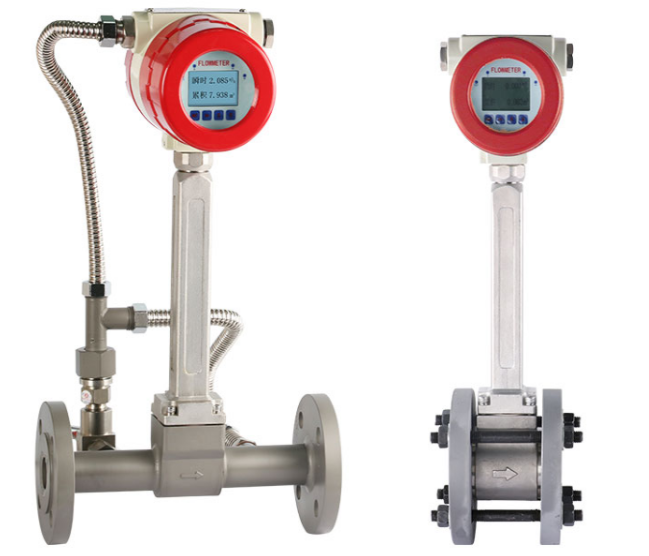

SUP-LUGB Vortex
SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal to measure the flow. With temperature and pressure compensation, it is suitable for the detection of gas flows in different environments, such as steam and compressed air and other gas.
- Description
SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal to measure the flow. With temperature and pressure compensation, it is suitable for the detection of gas flows in different environments, such as steam and compressed air and other gas.
Measure Media |
Gas,Water,Steam |
| Diameter Nominal | DN15-DN300 |
| Accuracy | ≤0.3% |
Range Ratio |
1:8~1:30 |
Medium Temperature |
-40℃~+260℃,-40℃~+300℃ |
Power Supply |
24VDC±5%,Li battery(3.6VDC) |
Signal Output |
4-20mA or frequency |
Interface |
RS485,HART |
Body Materials |
316 stainless steel |
Connection |
M20*1.5 |
Display Language |
Chinese,English |
